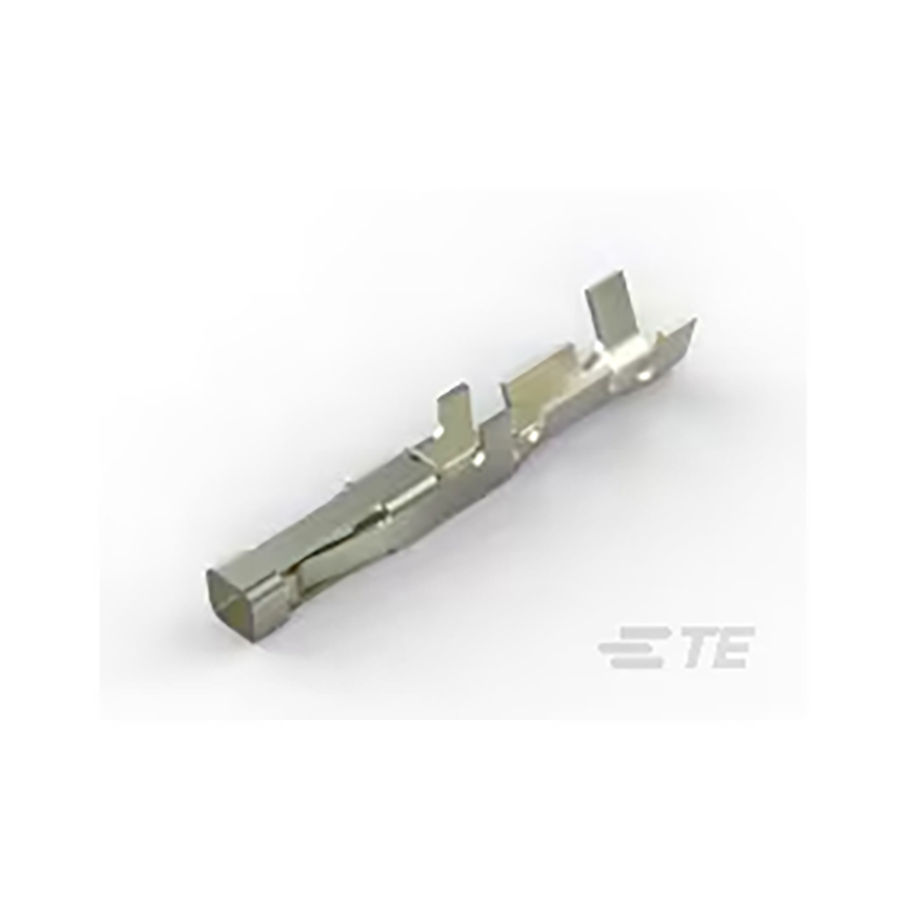

1-794607-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-794607-1
Datasheet:
Description:
IC and Component Sockets Cable Socket Pitch:3 mm
| Parameter | Value |
|---|---|
| Length | 12.17 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 1 |
| Height | 1.93 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 2.67 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 30 AWG to 26 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 5 A |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 26 AWG |
| Plating | Gold, Tin |
| Insulation Diameter | 1.52 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Female |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 53
Distributors
pcbx
pcbxUnit Price$0.11472
Ext.Price$0.11472
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11472 | $0.11472 |
| 10 | $0.10489 | $1.04890 |
| 50 | $0.09590 | $4.79500 |
| 100 | $0.08766 | $8.76600 |
| 500 | $0.08012 | $40.06000 |
| 1000 | $0.07743 | $77.43000 |
| 3000 | $0.07483 | $224.49000 |
| 5000 | $0.07232 | $361.60000 |
